Shenzhen YHT Broadband Equipment Co. Ltd YHT provide one stop solution for fiber optic products.
7 Years
| Ask Lasest Price | |
| Brand Name : | CSYHT |
| Model Number : | MIB-001 |
| Payment Terms : | D/A, L/C, D/A, D/P, T/T |
| Supply Ability : | 300 pcs per day |
| Delivery Time : | a week |
| Price : | Negotiable |
Fiber optic SOHO box for indoor wall mounted application in FTTX project
Description:
Fiber optic SOHO box is a smart box integrated of intelligent system and FTTH-Fiber to home system. It is widely used in connection and allocation of line for broadband, telephone, computer, television, audio, monitor, switch, power, etc and fiber to home. Normally it is used by embed into the wall.
Feature:
1. High quality sanded cover, reserve temperature-dissipating holes. Effective air exchange; balance the heat, transfer the wireless signal outward high efficiently.
2. Made by cold-rolled steel-thickness 1mm, and Electrostatic spraying. No oxidation, corrosion and not easy out of shape.
3. Large space of the inner box, reasonable layout, besides to install with fiber optic components, and enough space leave for installing 1 ONU, 1 router,1 faceplate(2core),and 4 module.
4. Standard design, suitable to apply for communication projects and household decoration.
5. Compact opening and closing the door, easy using.
Accessory List
| NO. | Name | Spec. | Unit | Quantity | Remark |
| 1 | Box | Box size: 390(W)*340(H)*139(D)mm | set | 1 | standard |
Bottom box size: 350(W)*300(H)*120(D)mm | set | 1 | |||
| 2 | Face Plate | FP-008 | pc | 1 | standard |
| 3 | Power socket | Universal | set | 1 | standard |
| 4 | Binding post | 3 | set | 1 | standard |
| 5 | Telephone module | 1in 4out | set | 1 | optional |
| 6 | Television module | 1in 4out | set | 1 | optional |
| 7 | Accessory | Screw, cable tie … etc. | set | standard |

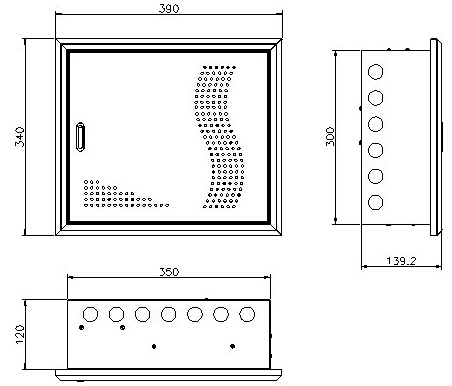

Picture:
|
|
